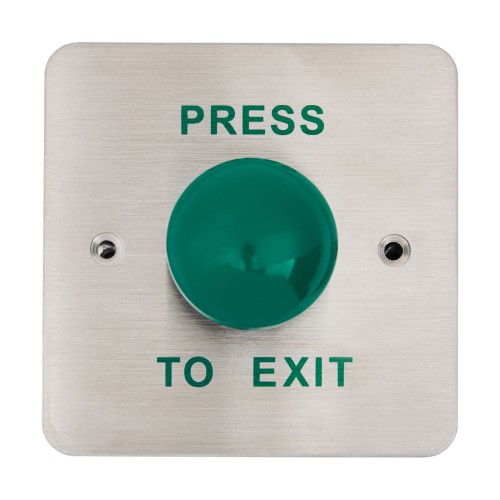

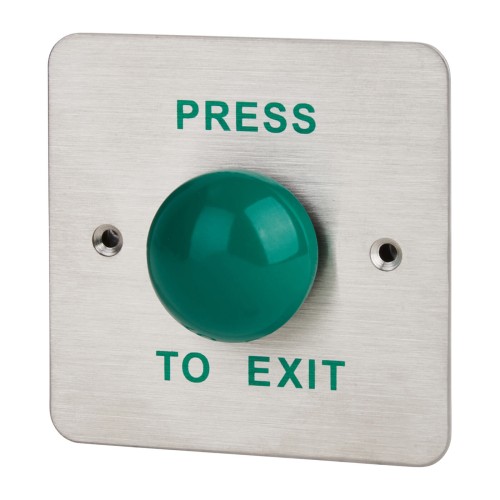

High Impact Flush Dome Press To Exit Switch - 85 x 85mm - Single

A high impact flush dome exit switch for use with access control systems
Suitable for high traffic environments, and situations where a degree of vandal resistance is required (such as schools or hospitals)
Large green button provides easy visual identification and ease of use
Stainless steel
Flush mounting
NO and NC changeover contacts
Momentary switch - will operate while the button is pressed
Contact rating: 2A @ 12Vdc
Green dome is 35mm diameter
For indoor use only
For low voltage use only

Specifications

Length (mm): 85
Option: Press to Exit - Dome Button
Size (mm): 85 x 85
Type: Exit Switch/Button
Width (mm): 85
Supply Voltage (VAC)/VDC: 12/24
Material: Carbon Steel
Pack Quantity: 1

Overview

• High Impact Flush Dome Press To Exit Switch - 85 x 85mm - Single
• A high impact flush dome exit switch for use with access control systems
• Suitable for high traffic environments, and situations where a degree of vandal resistance is required (such as schools or hospitals)
• Large green button provides easy visual identification and ease of use
• Stainless steel
• Flush mounting
• NO and NC changeover contacts
• Momentary switch - will operate while the button is pressed
• Contact rating: 2A @ 12Vdc
• Green dome is 35mm diameter
• For indoor use only
• For low voltage use only
