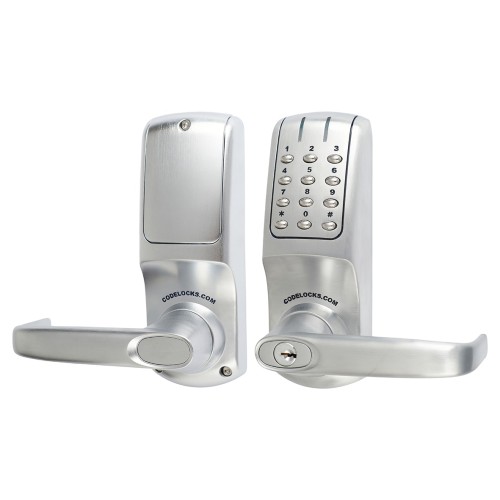

Codelocks CL5010 Digital Code Lock and Latch with Intumescent - Key Override - Brushed Steel

Electronic push button code lock suitable for interior and exterior doors - high use applications such as office entrances and commercial properties
Heavy duty
On door code change
Includes 60mm latchbolt
Up to 200,000 operations per set of batteries
Allows up to 10 one time user codes and up to 80 user codes
Tamper time out and low battery warning
Tested to Grade 2 ANSI A156.2 / A156.25

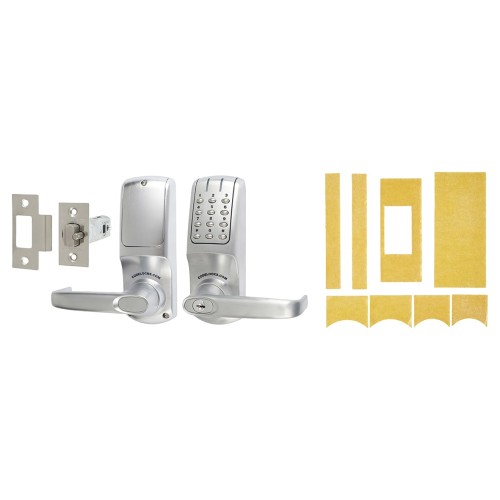

Code lock and latch with intumescent kit achieve a fire rating of 30 or 60 minutes
Tested in accordance to BS EN 1634-1: 2008
Suits 35-65mm door thickness
Code length: 4-6
Reversible handing
Code free and key override function
No hold back function

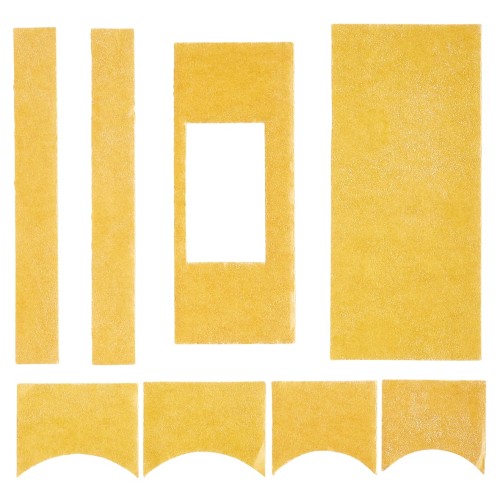

Material of intumescent: mono ammonium phosphate

Specifications

Backset (mm): 60
Code Change: On Door
Code Free Function: Yes
Code Length: 4-6
Door Thickness (mm): 35-65
Finish: Brushed Steel
Fire Rating: 60
Hand: Reversible
Hold Back Function: No
Model: CL5010
Option: Lever
Type: Electronic Code Lock
Use: Interior & Exterior
Key Override: Yes
Material: Zinc
Pack Quantity: 1

Overview

• Codelocks CL5010 Digital Code Lock and Latch with Intumescent - Key Override - Brushed Steel
• Electronic push button code lock suitable for interior and exterior doors - high use applications such as office entrances and commercial properties
• Heavy duty
• On door code change
• Includes 60mm latchbolt
• Up to 200,000 operations per set of batteries
• Allows up to 10 one time user codes and up to 80 user codes
• Tamper time out and low battery warning
• Tested to Grade 2 ANSI A156.2 / A156.25
• Code lock and latch with intumescent kit achieve a fire rating of 30 or 60 minutes
• Tested in accordance to BS EN 1634-1: 2008
• Suits 35-65mm door thickness
• Code length: 4-6
• Reversible handing
• Code free and key override function
• No hold back function
• Material of intumescent: mono ammonium phosphate
