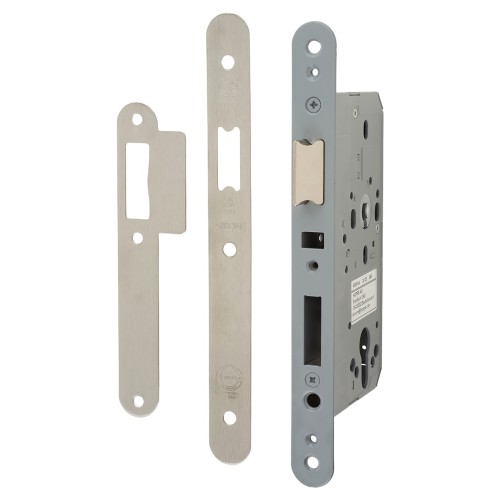

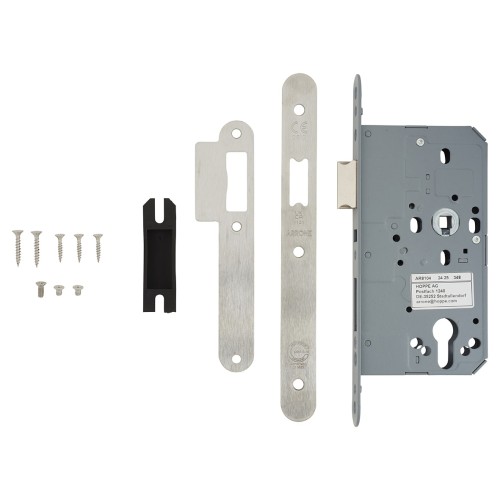

Arrone AR8104 DIN Mortice Nightlatch - 88mm Case - 60mm Backset - Radius - Satin Stainless Steel

Arrone AR8104 DIN nightlatch designed for commercial and public buildings; durability and fire safety
Radius profile DIN nightlatch suitable for metal doors
Suitable for use with half lever sets
60mm backset
Double throw, 20mm projection deadbolt
72mm centres
Designed for bolt through furniture with 38mm centres
8mm follower with spindle gripping feature
Reversible latch
Suitable for sprung or unsprung furniture
Complies with BS8300 Equality Act
CE and UKCA marked to en 12209
BS EN 1631-1 Fire Rating: 30, 60, 90 & 120 minute timber fire doors & 240 minutes steel fire doors

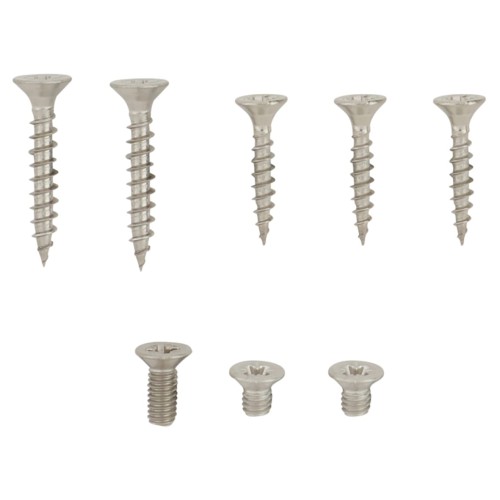

Note this lock is not supplied with the cylinder fixing screw pozidrive countersunk M5 x 90mm
Square version available
NOTE: Intumescent should be used to ensure adherence to fire regulations - search for: 'intumescent lock pack'

Specifications

Backset (mm): 60
British Standard: Yes
CE Rated: Yes
Case Size (mm): 88
Centres (mm): 78
Certifire: Yes
Depth (mm): 88
Equality Act Compliant: Yes
Finish: Satin Stainless Steel
Finish Group: Stainless Steel
Fire Rating: 30/60/90/120 & 240
Height (mm): 165
Keyed Alike: No
Length (mm): 235
Material: Mild Steel
Pack Quantity: 1
Profile: Radius
Secured by Design: No
Suit Door Thickness (mm): 44
Thickness (mm): 16
Type: Mortice Nightlatch
UKCA Approved: Yes
Standards: BS EN 12209, BS EN 1634-1, BS 8300
