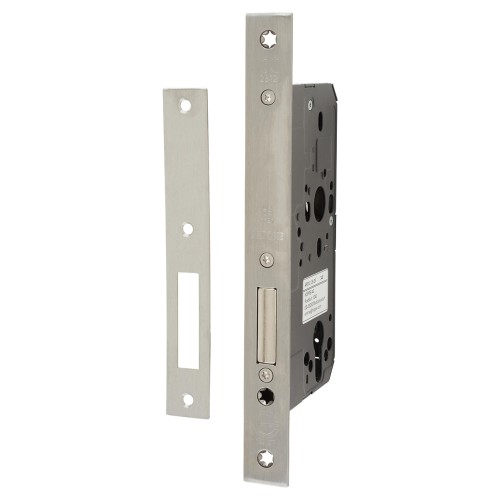

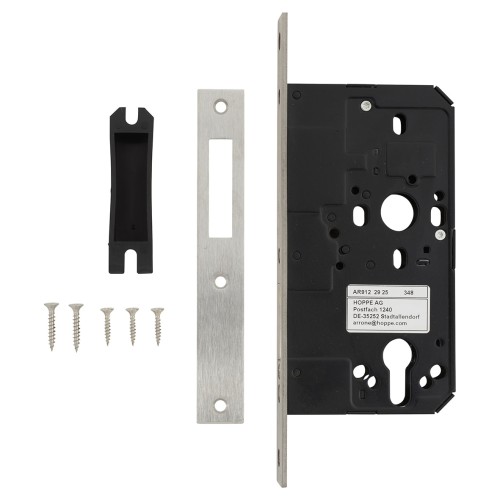

Arrone AR912 DIN Deadlock - 88mm Case - 60mm Backset - Square - Satin Stainless Steel

Arrone AR912 DIN deadlock designed for commercial and public buildings; durability and fire safety
Square profile DIN deadlock suitable for wooden doors
60mm backset
Single throw, 20mm projection deadbolt
Designed for bolt through furniture with 38mm centres
8mm follower with spindle gripping feature
Suitable for sprung or unsprung furniture
Complies with BS8300 Equality Act
CE and UKCA marked to en 12209
BS EN 1631-1 Fire Rating: 30, 60, 90 & 120 minute timber fire doors & 240 minutes steel fire doors
Note this lock is not supplied with the cylinder fixing screw pozidrive countersunk M5 x 90mm
Radius version available
NOTE: Intumescent should be used to ensure adherence to fire regulations - search for: 'intumescent lock pack'

Specifications

Backset (mm): 60
British Standard: Yes
CE Rated: Yes
Case Size (mm): 88
Certifire: Yes
Depth (mm): 88
Equality Act Compliant: Yes
Finish: Satin Stainless Steel
Finish Group: Stainless Steel
Fire Rating: 30/60/90/120 & 240
Height (mm): 165
Keyed Alike: No
Length (mm): 235
Material: Mild Steel
Option: Euro
Pack Quantity: 1
Profile: Square
Secured by Design: No
Suit Door Thickness (mm): 44
Thickness (mm): 16
Type: Deadlock
UKCA Approved: Yes
Standards: BS EN 12209, BS EN 1634-1, BS 8300
