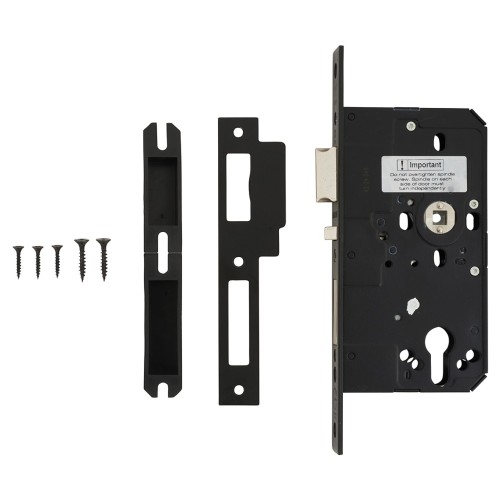

Arrone AR915 DIN Escape Sashlock - 88mm Case - 60mm Backset - Square - Matt Black

Arrone AR915 DIN escape sashlock designed for commercial and public buildings; durability and fire safety
Square profile DIN escape sashlock suitable for wooden doors
8mm split follower for escape function; latch and deadbolt withdrawn by internal or deadbolt by outside key
60mm backset
78mm centres
Designed for bolt through furniture with 38mm centres
8mm follower with spindle gripping feature
Reversible latch with anti thrust operation
Suitable for sprung or unsprung furniture
Complies with BS8300 Equality Act
CE and UKCA marked to en 12209
BS EN 1631-1 Fire Rating: 30, 60, 90 & 120 minute timber fire doors & 240 minutes steel fire doors

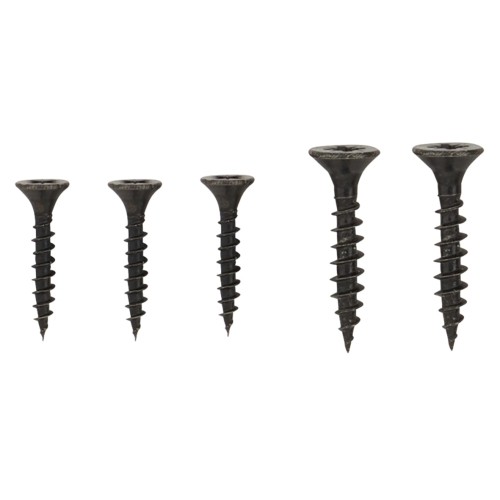

Note this lock is not supplied with the cylinder fixing screw pozidrive countersunk M5 x 90mm
NOTE: Intumescent should be used to ensure adherence to fire regulations - search for: 'intumescent lock pack'

Specifications

Backset (mm): 60
British Standard: Yes
CE Rated: Yes
Case Size (mm): 88
Centres (mm): 72
Certifire: Yes
Depth (mm): 88
Equality Act Compliant: Yes
Finish: Matt Black
Finish Group: Black
Fire Rating: 30/60/90/120 & 240
Height (mm): 165
Keyed Alike: No
Length (mm): 235
Material: Mild Steel
Option: Euro
Pack Quantity: 1
Profile: Square
Secured by Design: No
Suit Door Thickness (mm): 44
Thickness (mm): 16
Type: Sashlock
UKCA Approved: Yes
Standards: BS EN 12209, BS EN 1634-1, BS 8300
