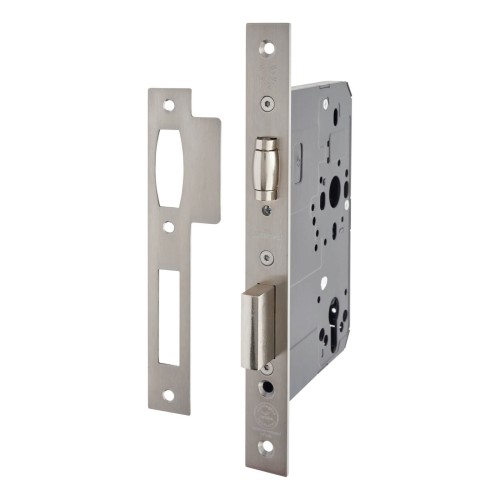

Arrone AR916 Euro Profile DIN Rollerbolt - 105mm Case - 80mm Backset - Satin Stainless Steel

80mm backset is ideal for anti-ligature door furniture
Suitable for sprung or unsprung furniture
BS8300 Equality Act compliant
Designed for bolt through furniture with 38mm centres
72mm centre
8mm follower with spindle gripping feature
Reversible latch
Fire Rating: 30, 60, 90, 120 minute timber and 240 minute steel un-latched fire doors
Note this lock is not supplied with the cylinder
Fixing screw - pozidrive countersunk M5 x 90mm
NOTE: Intumescent should be used to ensure adherence to fire regulations - search for: 'intumescent lock pack'

Specifications

Backset (mm): 80
Case Size (mm): 105
Centres (mm): 72
Certifire: Yes
Equality Act Compliant: Yes
Finish: Satin Stainless Steel
Finish Group: Stainless Steel
Fire Rating: 30/60/90/120 & 240
Size (mm): 105 x 80
Type: Roller Catch
CE Rated: Yes
British Standard: No
Secured by Design: No
UKCA Approved: Yes
Keyed Alike: No
Material: Mild Steel
Pack Quantity: 1

Overview

• Arrone AR916 Euro Profile DIN Rollerbolt - 105mm Case - 80mm Backset - Satin Stainless Steel
• 80mm backset is ideal for anti-ligature door furniture
• Suitable for sprung or unsprung furniture
• BS8300 Equality Act compliant
• Designed for bolt through furniture with 38mm centres
• 72mm centre
• 8mm follower with spindle gripping feature
• Reversible latch
• Fire Rating: 30, 60, 90, 120 minute timber and 240 minute steel un-latched fire doors
• Note this lock is not supplied with the cylinder
• Fixing screw - pozidrive countersunk M5 x 90mm
• NOTE: Intumescent should be used to ensure adherence to fire regulations - search for: 'intumescent lock pack'
