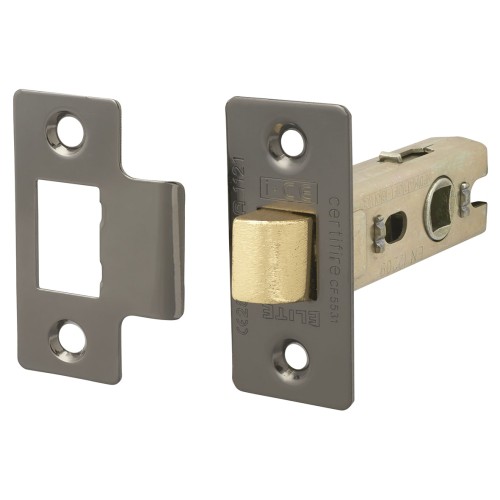

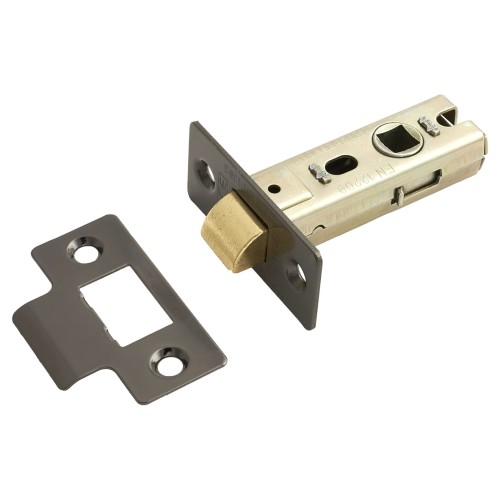

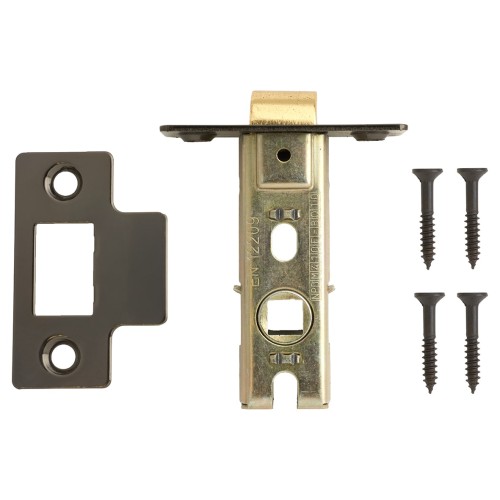

Exel Heavy Duty Tubular Latch - 63mm Case - 45mm Backset - Square - Black Nickel

Exel heavy duty tubular latches are designed for both door furniture and door knobs
The forend can be replaced without having to remove the lock
Easily reversible on site for left or right handed applications
30 & 60 minute fire rating
Easily reversible onsite for left or right hand applications
CE rated to BS EN12209:2003
Tested to 50,000 cycles
NOTE: Due to the heavy spring within the latch, these tubular latches are not suitable for sprung door furniture
10 year guarantee
NOTE: Intumescent should be used to ensure adherence to fire regulations

Specifications

Backset (mm): 45
British Standard: No
CE Rated: Yes
Case Size (mm): 63
Centres (mm): 57
Certifire: Yes
Equality Act Compliant: Yes
Finish: Black Nickel
Finish Group: Black
Fire Rating: 30/60
Hand: Reversible
Height (mm): 19
Keyed Alike: No
Length (mm): 63
Material: Mild Steel
Option: Tubular
Profile: Square
Size (mm): 63 x 19
Suit Door Thickness (mm): 30+
Type: Latch
Pack Quantity: 1

Overview

• Exel Heavy Duty Tubular Latch - 63mm Case - 45mm Backset - Square - Black Nickel
• Exel heavy duty tubular latches are designed for both door furniture and door knobs
• The forend can be replaced without having to remove the lock
• Easily reversible on site for left or right handed applications
• 30 & 60 minute fire rating
• Easily reversible onsite for left or right hand applications
• CE rated to BS EN12209:2003
• Tested to 50,000 cycles
• NOTE: Due to the heavy spring within the latch, these tubular latches are not suitable for sprung door furniture
• 10 year guarantee
• NOTE: Intumescent should be used to ensure adherence to fire regulations
