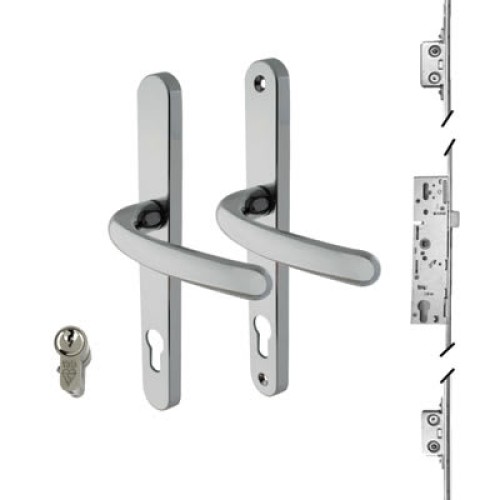

3 Point Multipoint Lock Kit and Handle - 2 Hook - 35mm Backset - 92mm c/c - Bright Chrome

Complete multipoint lock kit for uPVC and timber doors, including lock, high security cylinder and door handle
Kit includes: 3 point multipoint lock (2 hook bolts) with 35mm backset and 92mm centres, timber keeps, Yale Kitemarked cylinder (35+35mm double euro profile) and a multipoint door handle
Lock length: 2100mm (can be cropped to size)
16mm faceplate
For split spindle function, a split spindle will need to be purchased separately
Lock cylinder is tested to BS EN1303:2005 and TS007:2014 1* rated - high security rating for extra peace of mind
Cylinder also features Anti-Bump, Anti-Pick, Anti-screw and Anti-Drill protection, and is Kitemark and Secured by Design approved
To lock; lift handle upwards to engage the locking points and turn the key
To unlock; use the key and depress the handle to withdraw the locking points
Door handle plate size: 243 x 32mm
211mm bolt centres
Top Bolt: 570mm
Bottom Bolt: 662mm

Specifications

Application: uPVC/Timber
Backset (mm): 35
Centres (mm): 92
Faceplate (mm): 16
Finish: Bright Chrome
Type: Lock Kit
Bottom Bolt 1 (mm): 662
Cam (mm): 12
Locking Points: 3
Top Bolt 1 (mm): 570
Hook Bolt: 2
Length (mm): 2100
Material: N/A
Pack Quantity: 1

Overview

• 3 Point Multipoint Lock Kit and Handle - 2 Hook - 35mm Backset - 92mm c/c - Bright Chrome
• Complete multipoint lock kit for uPVC and timber doors, including lock, high security cylinder and door handle
• Kit includes: 3 point multipoint lock (2 hook bolts) with 35mm backset and 92mm centres, timber keeps, Yale Kitemarked cylinder (35+35mm double euro profile) and a multipoint door handle
• Lock length: 2100mm (can be cropped to size)
• 16mm faceplate
• For split spindle function, a split spindle will need to be purchased separately
• Lock cylinder is tested to BS EN1303:2005 and TS007:2014 1* rated - high security rating for extra peace of mind
• Cylinder also features Anti-Bump, Anti-Pick, Anti-screw and Anti-Drill protection, and is Kitemark and Secured by Design approved
• To lock; lift handle upwards to engage the locking points and turn the key
• To unlock; use the key and depress the handle to withdraw the locking points
• Door handle plate size: 243 x 32mm
• 211mm bolt centres
• Top Bolt: 570mm
• Bottom Bolt: 662mm
