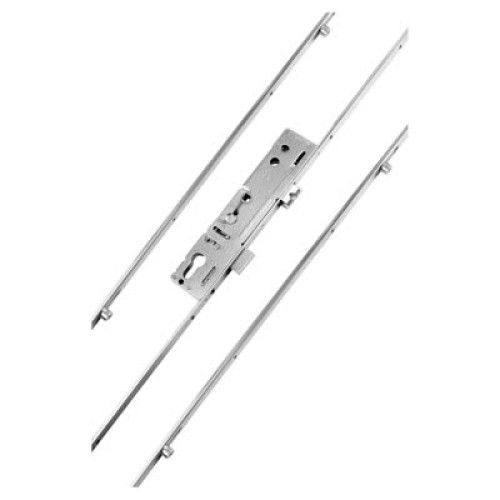

Yale Lockmaster Dual Spindle Multipoint Door Lock - 4 Roller - 35mm Backset - 92mm c/c

High security multipoint lock from the best selling Yale Lockmaster range
Suitable for uPVC and timber doors
4 rollers for effective weather sealing
Dual spindle function - can be used with offset door handles, and means access from the outside can only be gained by key entry
5 locking points
16mm faceplate
Top Bolt 1: 352mm
Top Bolt 2: 707mm
Bottom Bolt 1: 427mm
Bottom Bolt 2: 782mm
Length: 2200mm
10 year guarantee
Please note: cylinder must be ordered separately. We recommend the Yale Kitemarked or Mila ranges in our Cylinder section
Lock is supplied without keeps as they are to replace existing locks and would therefore use the existing keeps

Specifications

Application: uPVC/Timber
Backset (mm): 35
Bottom Bolt 1 (mm): 427
Bottom Bolt 2 (mm): 782
Centres (mm): 92
Cut to Size: Yes
Faceplate (mm): 16
Keeps Included: No
Locking Points: 5
Option: Euro Profile
Secured by Design: No
Spindle: Dual
Top Bolt 1 (mm): 352
Top Bolt 2 (mm): 707
Type: Lock
Deadbolt: 1
Roller: 4
Length (mm): 2200
British Standard: Yes
Standards: BS EN 1670 Grade 4 (240 hours)
Range: Lockmaster
Material: Zinc
Pack Quantity: 1

Overview

• Yale Lockmaster Dual Spindle Multipoint Door Lock - 4 Roller - 35mm Backset - 92mm c/c
• High security multipoint lock from the best selling Yale Lockmaster range
• Suitable for uPVC and timber doors
• 4 rollers for effective weather sealing
• Dual spindle function - can be used with offset door handles, and means access from the outside can only be gained by key entry
• 5 locking points
• 16mm faceplate
• Top Bolt 1: 352mm
• Top Bolt 2: 707mm
• Bottom Bolt 1: 427mm
• Bottom Bolt 2: 782mm
• Length: 2200mm
• 10 year guarantee
• Please note: cylinder must be ordered separately. We recommend the Yale Kitemarked or Mila ranges in our Cylinder section
• Lock is supplied without keeps as they are to replace existing locks and would therefore use the existing keeps
