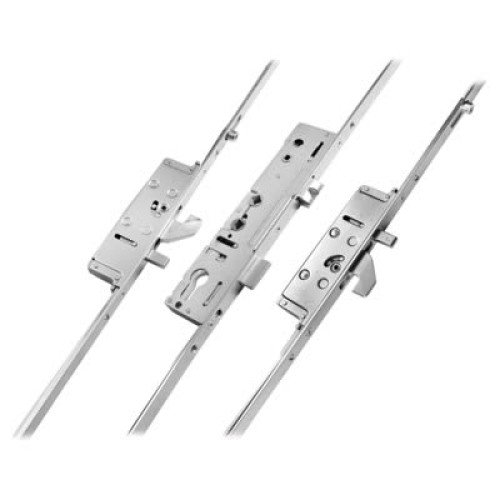

Yale Lockmaster Extendable uPVC Multipoint Door Lock - 2 Roller 2 Hook - 35mm Backset - 62/92mm c/c

High security multipoint lock from the best selling Yale Lockmaster range
Suitable for uPVC doors
2 hooks for anti-separation
2 rollers for effective weather sealing
Dual spindle function - can be used with offset door handles, and means access from the outside can only be gained by key entry
5 locking points
16mm faceplate
Top Bolt 1: 504mm
Top Bolt 2: 649mm
Bottom Bolt 1: 532mm
Bottom Bolt 2: 701mm
Length: 2200mm
10 year guarantee
Please note: cylinder must be ordered separately. We recommend the Yale Kitemarked range in our cylinder section
Lock is supplied without keeps as they are to replace existing locks and would therefore use the existing keeps

Specifications

Application: uPVC
Backset (mm): 35
Bottom Bolt 1 (mm): 532
Bottom Bolt 2 (mm): 701
Centres (mm): 62/92
Cut to Size: Yes
Faceplate (mm): 16
Keeps Included: No
Locking Points: 5
Option: Euro Profile
Secured by Design: Yes
Spindle: Dual
Top Bolt 1 (mm): 504
Top Bolt 2 (mm): 649
Type: Lock
Deadbolt: 1
Hook Bolt: 2
Roller: 2
Length (mm): 2200
British Standard: Yes
Standards: BS EN 1670 Grade 4 (240 hours)
Range: Lockmaster
Material: Zinc
Pack Quantity: 1

Overview

• Yale Lockmaster Extendable uPVC Multipoint Door Lock - 2 Roller 2 Hook - 35mm Backset - 62/92mm c/c
• High security multipoint lock from the best selling Yale Lockmaster range
• Suitable for uPVC doors
• 2 hooks for anti-separation
• 2 rollers for effective weather sealing
• Dual spindle function - can be used with offset door handles, and means access from the outside can only be gained by key entry
• 5 locking points
• 16mm faceplate
• Top Bolt 1: 504mm
• Top Bolt 2: 649mm
• Bottom Bolt 1: 532mm
• Bottom Bolt 2: 701mm
• Length: 2200mm
• 10 year guarantee
• Please note: cylinder must be ordered separately. We recommend the Yale Kitemarked range in our cylinder section
• Lock is supplied without keeps as they are to replace existing locks and would therefore use the existing keeps
