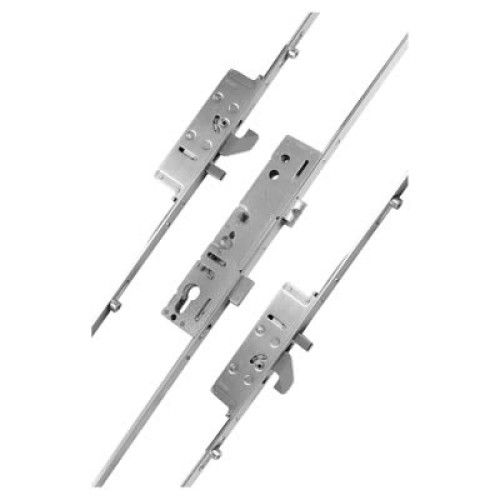

Yale Lockmaster Extendable uPVC Multipoint Door Lock - 4 Roller 2 Hook - 35mm Backset - 92mm c/c

High security multipoint lock from the best selling Yale Lockmaster range
Suitable for uPVC doors
2 hooks for anti-separation
4 rollers for effective weather sealing
Single spindle operation - allows entry from both sides of the door unless it is manually locked. To lock the door, lift the handle upwards to engage the locking bolts and use a key to deadlock the door
7 locking points
16mm faceplate
Top Bolt 1: 409mm
Top Bolt 2: 579mm
Top Bolt 3: 713mm
Bottom Bolt 1: 438mm
Bottom Bolt 2: 582mm
Bottom Bolt 3: 696mm
Length: 2117mm
10 year guarantee
Please note: cylinder must be ordered separately. We recommend the Yale Kitemarked or Mila ranges in our Cylinder section
Lock is supplied without keeps as they are to replace existing locks and would therefore use the existing keeps

Specifications

Application: uPVC
Backset (mm): 35
Bottom Bolt 1 (mm): 438
Bottom Bolt 2 (mm): 582
Centres (mm): 92
Cut to Size: Yes
Faceplate (mm): 16
Keeps Included: No
Locking Points: 7
Option: Euro Profile
Secured by Design: Yes
Spindle: Fixed/Single
Top Bolt 1 (mm): 409
Top Bolt 2 (mm): 579
Type: Lock
Deadbolt: 1
Hook Bolt: 2
Roller: 4
Length (mm): 2117
British Standard: Yes
Standards: BS EN 1670 Grade 4 (240 hours)
Range: Lockmaster
Material: Zinc
Pack Quantity: 1

Overview

• Yale Lockmaster Extendable uPVC Multipoint Door Lock - 4 Roller 2 Hook - 35mm Backset - 92mm c/c
• High security multipoint lock from the best selling Yale Lockmaster range
• Suitable for uPVC doors
• 2 hooks for anti-separation
• 4 rollers for effective weather sealing
• Single spindle operation - allows entry from both sides of the door unless it is manually locked. To lock the door, lift the handle upwards to engage the locking bolts and use a key to deadlock the door
• 7 locking points
• 16mm faceplate
• Top Bolt 1: 409mm
• Top Bolt 2: 579mm
• Top Bolt 3: 713mm
• Bottom Bolt 1: 438mm
• Bottom Bolt 2: 582mm
• Bottom Bolt 3: 696mm
• Length: 2117mm
• 10 year guarantee
• Please note: cylinder must be ordered separately. We recommend the Yale Kitemarked or Mila ranges in our Cylinder section
• Lock is supplied without keeps as they are to replace existing locks and would therefore use the existing keeps
