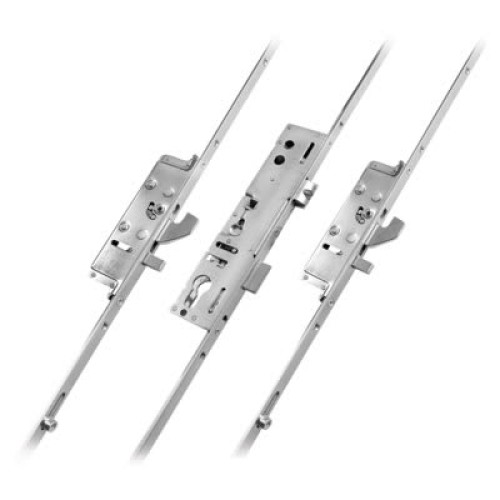

Yale Lockmaster Multipoint Door Lock - 2 Roller 2 Hook & Anti Lift Pin - 35mm Backset - 92mm c/c

High security multipoint lock from the best selling Yale Lockmaster range
Suitable for uPVC and timber doors
2 hooks for anti-separation
2 rollers for effective weather sealing
Anti-lift pins prevent the door being lifted off its hinges to gain access
Single spindle operation - allows entry from both sides of the door unless it is manually locked. To lock the door, lift the handle upwards to engage the locking bolts and use a key to deadlock the door
5 locking points
16mm faceplate
Top Bolt 1: 528mm
Top Bolt 2: 720mm
Bottom Bolt 1: 647mm
Bottom Bolt 2: 770mm
Length: 2200mm (can be cut to size)
10 year guarantee
Please note: cylinder must be ordered separately. We recommend the Yale Kitemarked or Mila ranges in our Cylinder section
Lock is supplied without keeps as they are to replace existing locks and would therefore use the existing keeps

Specifications

Application: uPVC/Timber
Backset (mm): 35
Bottom Bolt 1 (mm): 647
Bottom Bolt 2 (mm): 770
Centres (mm): 92
Cut to Size: Yes
Faceplate (mm): 16
Keeps Included: No
Locking Points: 5
Option: Euro Profile
Secured by Design: Yes
Spindle: Fixed/Single
Top Bolt 1 (mm): 528
Top Bolt 2 (mm): 720
Type: Lock
Deadbolt: 1
Hook Bolt: 2
Roller: 2
Length (mm): 2200
British Standard: Yes
Standards: BS EN 1670 Grade 4 (240 hours)
Range: Lockmaster
Material: Zinc
Pack Quantity: 1

Overview

• Yale Lockmaster Multipoint Door Lock - 2 Roller 2 Hook & Anti Lift Pin - 35mm Backset - 92mm c/c
• High security multipoint lock from the best selling Yale Lockmaster range
• Suitable for uPVC and timber doors
• 2 hooks for anti-separation
• 2 rollers for effective weather sealing
• Anti-lift pins prevent the door being lifted off its hinges to gain access
• Single spindle operation - allows entry from both sides of the door unless it is manually locked. To lock the door, lift the handle upwards to engage the locking bolts and use a key to deadlock the door
• 5 locking points
• 16mm faceplate
• Top Bolt 1: 528mm
• Top Bolt 2: 720mm
• Bottom Bolt 1: 647mm
• Bottom Bolt 2: 770mm
• Length: 2200mm (can be cut to size)
• 10 year guarantee
• Please note: cylinder must be ordered separately. We recommend the Yale Kitemarked or Mila ranges in our Cylinder section
• Lock is supplied without keeps as they are to replace existing locks and would therefore use the existing keeps
