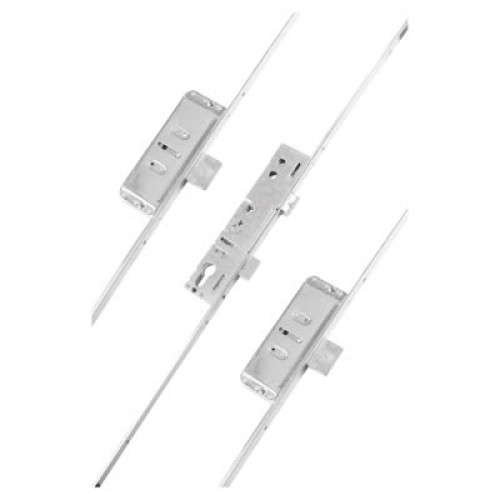

Yale Lockmaster Multipoint Door Lock - 3 Deadbolt - 35mm Backset - 92mm c/c - 2200mm Length

High security multipoint lock from the best selling Yale Lockmaster range
Suitable for uPVC and timber doors
Single spindle operation - allows entry from both sides of the door unless it is manually locked. To lock the door, lift the handle upwards to engage the locking bolts and use a key to deadlock the door
3 locking points
16mm faceplate
Top Bolt: 704mm
Bottom Bolt: 732mm
Length: 2200mm
10 year guarantee
Please note: cylinder must be ordered separately. We recommend the Yale Kitemarked or Mila ranges in our Cylinder section
Lock is supplied without keeps as they are to replace existing locks and would therefore use the existing keeps

Specifications

Application: uPVC/Timber
Backset (mm): 35
Bottom Bolt 1 (mm): 732
Centres (mm): 92
Cut to Size: No
Faceplate (mm): 16
Keeps Included: No
Locking Points: 3
Option: Euro Profile
Secured by Design: No
Spindle: Fixed/Single
Top Bolt 1 (mm): 704
Type: Lock
Deadbolt: 3
Length (mm): 2200
British Standard: Yes
Standards: BS EN 1670 Grade 4 (240 hours)
Range: Lockmaster
Material: Zinc
Pack Quantity: 1

Overview

• Yale Lockmaster Multipoint Door Lock - 3 Deadbolt - 35mm Backset - 92mm c/c - 2200mm Length
• High security multipoint lock from the best selling Yale Lockmaster range
• Suitable for uPVC and timber doors
• Single spindle operation - allows entry from both sides of the door unless it is manually locked. To lock the door, lift the handle upwards to engage the locking bolts and use a key to deadlock the door
• 3 locking points
• 16mm faceplate
• Top Bolt: 704mm
• Bottom Bolt: 732mm
• Length: 2200mm
• 10 year guarantee
• Please note: cylinder must be ordered separately. We recommend the Yale Kitemarked or Mila ranges in our Cylinder section
• Lock is supplied without keeps as they are to replace existing locks and would therefore use the existing keeps
