ECLISSE Double Fire Pocket Door Kit - FD30 - 120mm Finished Wall Thickness - 838 x 1981mm Door Size
- Brand: ECLISSE
- Product Code: 343558P
- Availability: In Stock
£1,560.64
inc. VAT
$32a
Specifications
Door Panel Size W x H (mm): 838 x 1981
Equality Act Compliant: Yes
Finished Wall Thickness (mm): 120
Fire Rating: 30
Material: Galvanised Steel
Max Door Weight (kg): 100
Max Passage Size W x H (mm): 1606 x 1960
No of Doors: 2
Overall Dimensions W x H (mm): 3320 x 2056
Suit Door Thickness (mm): 44
Type: Double Pocket Door Kit
Pack Quantity: 1
Overview
• ECLISSE Double Fire Pocket Door Kit - FD30 - 120mm Finished Wall Thickness - 838 x 1981mm Door Size

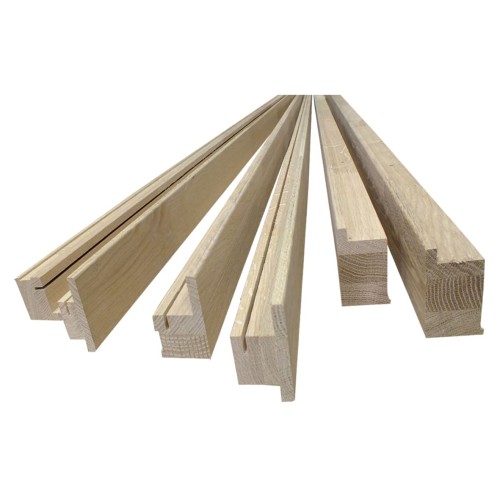

• The FD30 double fire pocket door kit has all the benefits of an ECLISSE Pocket Door system with a specially designed jamb/architrave kit made from a high-density slow burning hardwood
• Fully tested and approved by International Fire Consultants PAR/10057/01 Revision F
• Certification covers use on the following 44mm FD30 door panels (not supplied) by Jeld-Wen: Arlington 6 Panel, Atherton 4 Panel, Bostonian 6 Panel, Linea Panel, Oakfield 4 Panel, Oregon 4 Panel and Paint Grade Premium
• Certification covers use on the following 44mm FD30 door panels (not supplied) by XL Joinery: Palermo Essential, Palermo Original, Palermo Laminate, Palermo White Primed, Salerno, Salerno Laminate, Salerno White Primed, Ravenna, Ravenna Laminate, Forli, Forli Laminate, Salerno with clear glass, Palermo original 1 light with clear glass
• Certification covers use on the following 44mm FD30 door panels (not supplied) by Vicaima: MD55 Embossed Cottage Style, Essential Flush Vertical, Essential Flush Horizontal, Essential Plain Colours

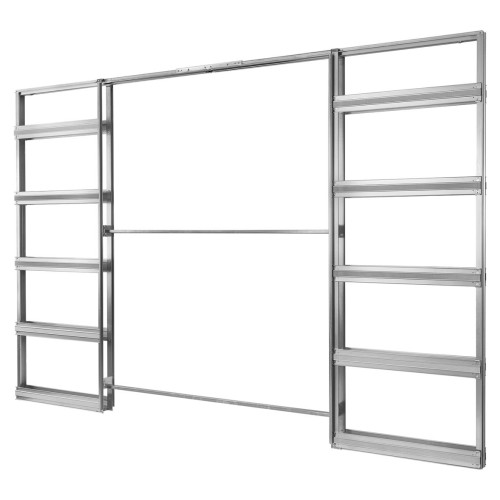

• Kit includes: 1x pocket door frame for double doors 838 x 1981mm, 1x fire rated jamb/architrave for double doors, 2x self closing mechanisms , 10x flexodice intumescent strips (15 x 2mm), 3x interdens intumescent (10 x 2mm) and 2x round fire rated flush handle sets in satin chrome
• Frame is 70mm and requires two layers of 12.5mm fireboard (not supplied) either side to give a finished wall thickness of 120mm
• Max door panel weight: Up to 100Kg before fitting the ECLISSE self-closing device for double pocket doors then the maximum door weight is 40kg
• Before ordering, please refer to the File of Application report and speak to your building inspector to determine whether a self-closing mechanism is required for your application. One required per door, compatible and certified for use with the ECLISSE BIAS Soft-Close Anti-Slam
• Runners are tested to 100,000 cycles, approximately 25 years on average use
• To be installed at finished floor level
• 15 year guarantee
