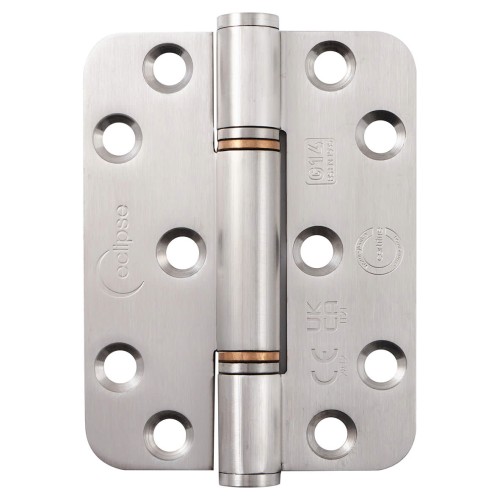

Eclipse Radius Thrust Bearing Grade 14 Butt Fire Door Hinge - 102 x 76 x 3mm - Sat Stainless - Pair

Extra heavy duty fire door hinges perfect for timber and steel doors up to 160kg
Unique welded cap system for increased durability
Smooth ball bearing operation reduces wear and provides a quieter operation
Saves installation time with quality fixings included
CE, UKCA & Certifire approved
BS EN Grade 14
Fire Rating: 30, 60, 90 & 120 minute timber fire doors & 240 minute steel fire doors

Specifications

BSEN Grade: 14
British Standard: Yes
CE Rated: Yes
Certifire: Yes
Corners: Radius
Duty: Heavy
Finish: Satin Stainless Steel
Finish Group: Stainless Steel
Fire Rating: 30/60/90/120 & 240
Length (mm): 102
Material: 201 Stainless Steel
Max Door Weight (kg): 160
Option: Ball Bearing
Pack Quantity: 2
Size Range (mm): 4 Inch/100mm
Size (mm): 102 x 76 x 3
Steel Rating: 201
Type: Butt Hinge
Use: Interior

Overview

• Eclipse Radius Thrust Bearing Grade 14 Butt Fire Door Hinge - 102 x 76 x 3mm - Sat Stainless - Pair
• Extra heavy duty fire door hinges perfect for timber and steel doors up to 160kg
• Unique welded cap system for increased durability
• Smooth ball bearing operation reduces wear and provides a quieter operation
• Saves installation time with quality fixings included
• CE, UKCA & Certifire approved
• BS EN Grade 14
• Fire Rating: 30, 60, 90 & 120 minute timber fire doors & 240 minute steel fire doors
