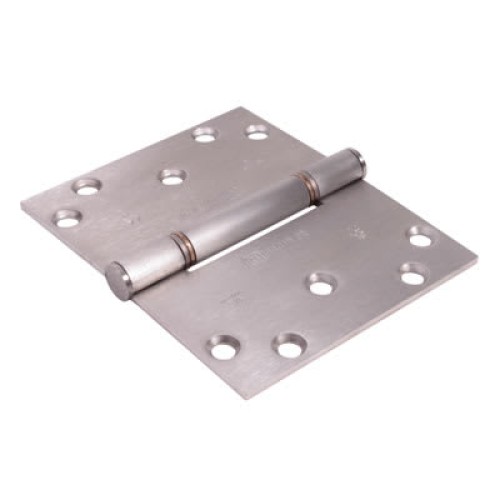

Royde & Tucker (H102-B) Grade 13 Butt Fire Door Hinge - 100 x 124 x 3mm - 304 Satin Stainless Steel

Fire door hinge suitable for doors up to 120kg
30 minute fire rating
BS EN Grade 13
Heavy duty - for high use fire doors
For interior use
Allows the door to project past an architrave
All our fire door hinges are CE marked
NOTE: Intumescent pads should be used to ensure adherence to fire regulations
Intumescent hinge pads are available in 100 x 30 and 100 x 43: search for 'intumescent hinge pads for FD30 and FD60' All of our hinge pads can be cut to size
Projection 29mm
25 year guarantee

Specifications

BSEN Grade: 13
British Standard: Yes
CE Rated: Yes
Certifire: Yes
Corners: Square
Duty: Heavy
Finish: Brushed Stainless Steel
Finish Group: Stainless Steel
Fire Rating: 30
Max Door Weight (kg): 120
Size Range (mm): 4 Inch/100mm
Size (mm): 100 x 124 x 3
Steel Rating: 304
Type: Triple Knuckle Hinge
Use: Interior
Material: 304 Stainless Steel
Length (mm): 100
Pack Quantity: 2

Overview

• Royde & Tucker (H102-B) Grade 13 Butt Fire Door Hinge - 100 x 124 x 3mm - 304 Satin Stainless Steel
• Fire door hinge suitable for doors up to 120kg
• 30 minute fire rating
• BS EN Grade 13
• Heavy duty - for high use fire doors
• For interior use
• Allows the door to project past an architrave
• All our fire door hinges are CE marked
• NOTE: Intumescent pads should be used to ensure adherence to fire regulations
• Intumescent hinge pads are available in 100 x 30 and 100 x 43: search for 'intumescent hinge pads for FD30 and FD60' All of our hinge pads can be cut to size
• Projection 29mm
• 25 year guarantee
