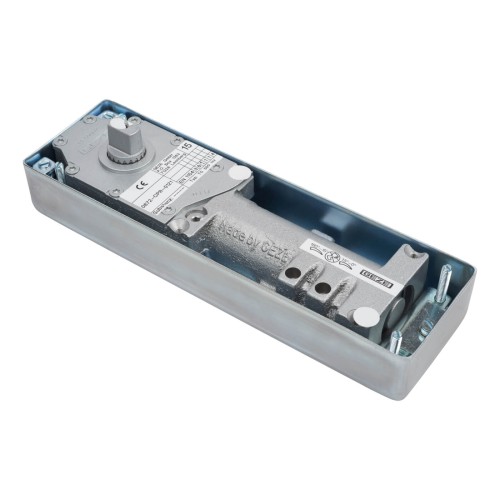

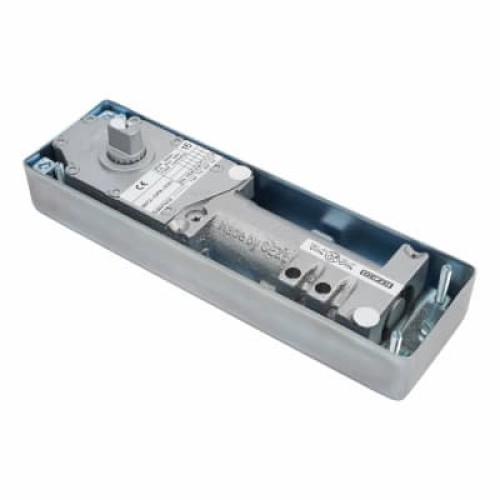

Geze TS500NV Floor Spring Size 1-4 - Non Hold Open
- Brand: GEZE
- Product Code: 116081P
- Availability: In Stock
£204.24
inc. VAT
$32a
Specifications
CE Rated: Yes
Certifire: Yes
Equality Act Compliant: Yes
Fire Rating: 60
Hold Open Function: No
Max Door Weight (kg): 150
Max Door Width (mm): 1100
Option: Non Hold Open
Power Size: EN 1-4
Size (mm): 278 x 82 x 42
Type: Floor Spring
Range: TS500NV/TS550NV
Material: Aluminium
Pack Quantity: 1
Overview
• Geze TS500NV Floor Spring Size 1-4 - Non Hold Open
• The GEZE TS 500 NV floor spring is a high performance, concealed floor mounted door closer designed for commercial and public buildings in the UK
• Combining robust functionality with a low-profile design, it ensures smooth, controlled door operation while enhancing safety, durability and compliance with UK building regulations
• Its reliability and versatility make it suitable for a wide range of doors in offices, hospitals, schools, retail environments, and other high traffic public spaces
• Adjustable closing force (EN 1–4), allowing precise tuning to suit varying door weights and usage
• Fully adjustable closing speed ensures optimal door performance, while the hydraulic latching action accelerates the door just before it closes, guaranteeing a secure latch without slamming
• Integrated back check protects doors and surrounding structures from uncontrolled opening or forceful operation
• Designed for versatility, the TS 500 NV accommodates both single and double action doors, supporting a maximum door width of 1100mm and a maximum weight of 150kg.
• Concealed, low-profile design (42mm height) offers aesthetic flexibility, making it ideal for both new builds and renovation projects
• Adjustments can be made from above after installation, simplifying maintenance and ensuring consistent performance
• Fully CE marked and approved for fire and smoke protection doors, the TS 500 NV meets EN 1154 and Certifire CF259 standards
• Complies with BS 8300 and the Equality Act, providing low opening resistance and accessibility in line with inclusive design requirements
• Engineered for enhanced safety and durability, the TS 500 NV reduces the risk of injury with its back check and hydraulic latching functions, while protecting door hardware from wear and impact
