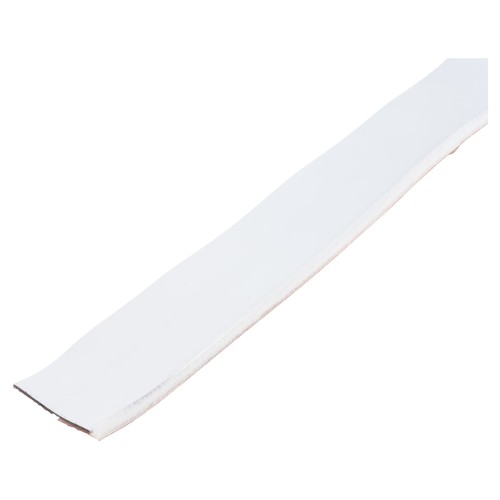

FrameFit High Expansion Fire Seal - FD60 - 1.5 x 54 x 5200mm - White

A fully tested and cost effective solution to bring a non-compliant firedoor into compliance. FrameFit ensures you do not have to replace the whole door
The high expansion seal must be used in conjunction with a low modulous seal if there is no intumescent strip present in the door
If there is an intumescent strip present in the frame, this must be removed to allow FrameFit seals to fit flush with the frame and should be replaced with both low modulous seals as well as a high expansion seal
Tested in accordance with BS 1634- 1 and BS 476 Part 22
Fire retardant up to 60 minutes

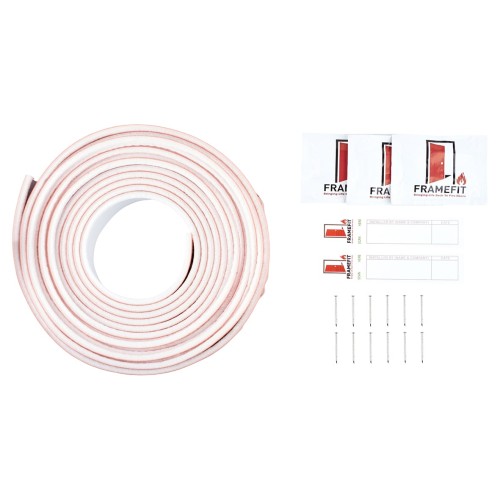

Supplied with pins and alcohol wipes to secure the seal to the frame as well as identification label and data pin
Note: High expansion seal is not for use on the bottom of the door - the low modulous seal and the fire seal carrier should be used instead
Tested to remediate gaps up to 15mm around the door when used with a low modulous seal

Specifications

Application: Fire & Smoke
Certifire: Yes
Colour: White
Fire Rating: 60
Length (mm): 5200
Size (mm): 54 x 1.5
Type: Fire & Smoke
Video ID: 98a113d6-faa9-4b55-9e7c-c7f71a62d407
Material: Polyvinyl Chloride
Pack Quantity: 1
Option: FrameFit Seal

Overview

• FrameFit High Expansion Fire Seal - FD60 - 1.5 x 54 x 5200mm - White
• A fully tested and cost effective solution to bring a non-compliant firedoor into compliance. FrameFit ensures you do not have to replace the whole door
• The high expansion seal must be used in conjunction with a low modulous seal if there is no intumescent strip present in the door
• If there is an intumescent strip present in the frame, this must be removed to allow FrameFit seals to fit flush with the frame and should be replaced with both low modulous seals as well as a high expansion seal
• Tested in accordance with BS 1634- 1 and BS 476 Part 22
• Fire retardant up to 60 minutes
• Supplied with pins and alcohol wipes to secure the seal to the frame as well as identification label and data pin
• Note: High expansion seal is not for use on the bottom of the door - the low modulous seal and the fire seal carrier should be used instead
• Tested to remediate gaps up to 15mm around the door when used with a low modulous seal
