ERA Vectis High Security 5 Lever Multipoint Door Lock - 2 Hook 2 Roller - 35mm Backset - 92mm c/c

High security multipoint lock with 5 lever operation that's suitable for uPVC and timber doors - no cylinder required
Twin high security steel hooks for anti-separation resistance - 10mm engagement into keeps
Twin adjustable precision rollers to maximise weather sealing and enhance performance
Split spindle function for nightlatch operation - means the door cannot be opened from outside without a key
3 locking points
16mm faceplate
Top Bolt 1: 283-565mm
Top Bolt 2: 360-816mm
Bottom Bolt 1: 415-871mm
Bottom Bolt 2: 520-976mm
Length: 1987mm
5 lever operation means no cylinder required, reducing the risk of cylinder bumping or snapping

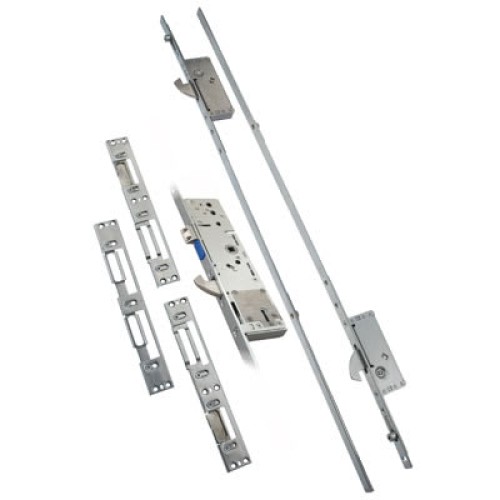

Kit contents: Central 5 lever gearbox in 35mm backset, croppable top and bottom extension pieces and adjustable keeps with universal packers

Specifications

Application: uPVC/Timber
Backset (mm): 35
Bottom Bolt 1 (mm): 415 - 871
Bottom Bolt 2 (mm): 520 - 976
Cam (mm): 8
Centres (mm): 92
Faceplate (mm): 16
Keeps Included: Yes
Locking Points: 3
Option: 5 Lever
Secured by Design: No
Spindle: Split
Top Bolt 1 (mm): 283 - 565
Top Bolt 2 (mm): 360 - 816
Type: Lock
Deadbolt: 1
Hook Bolt: 2
Roller: 2
Length (mm): 1987
British Standard: No
CE Rated: No
PAS 24: Yes
Range: Vectis
Material: Zinc
Certifire: No
UKCA Approved: No
Fire Rating: No
Pack Quantity: 1
