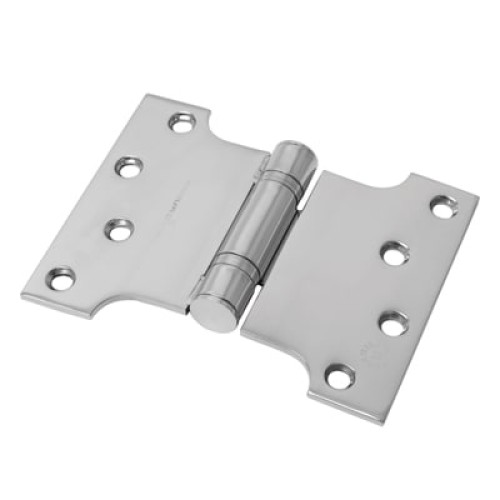

Enduro Max Parliament Hinge - 102 x 75 x 127 x 3.5mm - Polished Stainless Steel - Pair

Projects doors clear of architraves, window boards or downpipes
Suitable for doors up to 120kg
Heavy duty - for high use fire doors
For exterior / interior use
BS EN grade 13
Suitable for 60 minute fire doors
Measurements are leaf height x inside clearance x fully open width
Inside clearance measurement is between the wings of the hinge and is the maximum projection you can achieve on lightweight doors
For glazed or solid doors, inset the hinge leaf an additional 15% each side, for example 30% less projection
25 year guarantee
NOTE: Intumescent pads should be used to ensure adherence to fire regulations
Intumescent hinge pads are available in 100 x 30 and 100 x 43: search for 'intumescent hinge pads for FD30 and FD60' All of our hinge pads can be cut to size

Specifications

BSEN Grade: 13
CE Rated: Yes
Duty: Heavy
Finish: Polished Stainless Steel
Finish Group: Stainless Steel
Fire Rating: 60
Max Projection (mm): 75
Max Weight (kg): 120
Size Range (mm): 4 Inch/100mm
Size (mm): 102 x 75 x 127 x 3.5
Steel Rating: 201
Use: Interior & Exterior
Type: Parliament Hinge
Material: 304 Stainless Steel
Pack Quantity: 2

Overview

• Enduro Max Parliament Hinge - 102 x 75 x 127 x 3.5mm - Polished Stainless Steel - Pair
• Projects doors clear of architraves, window boards or downpipes
• Suitable for doors up to 120kg
• Heavy duty - for high use fire doors
• For exterior / interior use
• BS EN grade 13
• Suitable for 60 minute fire doors
• Measurements are leaf height x inside clearance x fully open width
• Inside clearance measurement is between the wings of the hinge and is the maximum projection you can achieve on lightweight doors
• For glazed or solid doors, inset the hinge leaf an additional 15% each side, for example 30% less projection
• 25 year guarantee
• NOTE: Intumescent pads should be used to ensure adherence to fire regulations
• Intumescent hinge pads are available in 100 x 30 and 100 x 43: search for 'intumescent hinge pads for FD30 and FD60' All of our hinge pads can be cut to size
