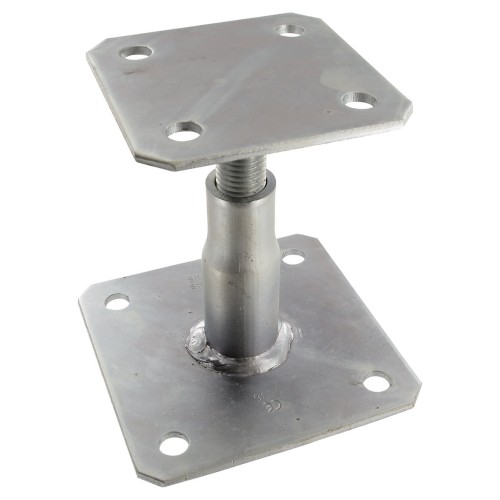

Simpson Strong Tie APB Adjustable Elevated Post Base for 100-200mm Posts - 100-150mm Height

Adjustable elevated post base (part code APB100/150) allows the structure to be adjusted prior to installation
Features a mounting plate on a screw to reach a specific standoff height ranging from 100-150mm
Ideal for post supports, garage ports and pergolas
Suitable for post sizes 100 x 100mm - 200 x 200mm
Not recommended when the top of post/column is not restrained
Manufactured from pre-galvanised mild steel

Specifications

CE Rated: Yes
Finish: Galvanised
Height (mm): 100-150
Material: Mild Steel
Option: Adjustable
Pack Quantity: 1
Size (mm): 150 x 130 x 4
Thickness (mm): 4
Type: Post Base
Width (mm): 130

Overview

• Simpson Strong Tie APB Adjustable Elevated Post Base for 100-200mm Posts - 100-150mm Height
• Adjustable elevated post base (part code APB100/150) allows the structure to be adjusted prior to installation
• Features a mounting plate on a screw to reach a specific standoff height ranging from 100-150mm
• Ideal for post supports, garage ports and pergolas
• Suitable for post sizes 100 x 100mm - 200 x 200mm
• Not recommended when the top of post/column is not restrained
• Manufactured from pre-galvanised mild steel
