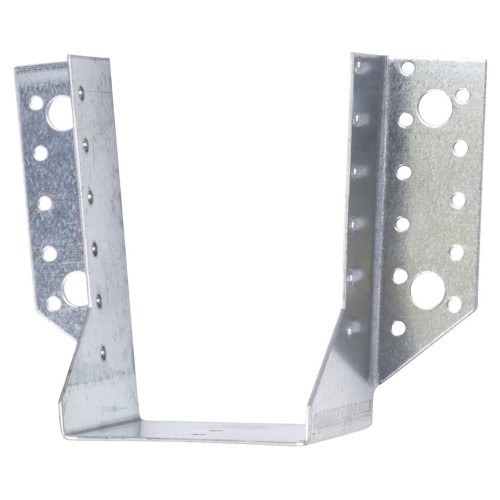

Simpson Strong Tie Heavy Duty Face Fixed U Joist Hanger - 91mm Width - 204.5mm Height

Heavy-duty face fixed 'U' joist hangers (part code SAE500/91/2) designed for applications requiring additional strength
Quick and simple installation - hangers are nailed using square twist nails but have bolt holes for 12mm fasteners into the face
For use with solid sawn timber joists, steel and purlins
Timber bolted capacity to be determined according to the relevant standards
The hanger depth is to be at least 60% of the carried member depth to prevent rotation, unless additional lateral restraint is added to the top of the carried member
Made from pre-galvanised mild steel

Specifications

CE Rated: Yes
Duty: Heavy
Finish: Galvanised
Height (mm): 204.5
Material: Mild Steel
Option: Face Fixed U
Pack Quantity: 1
Size (mm): 204.5 x 91 x 2
Thickness (mm): 2
Type: Joist Hanger
Width (mm): 91

Overview

• Simpson Strong Tie Heavy Duty Face Fixed U Joist Hanger - 91mm Width - 204.5mm Height
• Heavy-duty face fixed 'U' joist hangers (part code SAE500/91/2) designed for applications requiring additional strength
• Quick and simple installation - hangers are nailed using square twist nails but have bolt holes for 12mm fasteners into the face
• For use with solid sawn timber joists, steel and purlins
• Timber bolted capacity to be determined according to the relevant standards
• The hanger depth is to be at least 60% of the carried member depth to prevent rotation, unless additional lateral restraint is added to the top of the carried member
• Made from pre-galvanised mild steel
